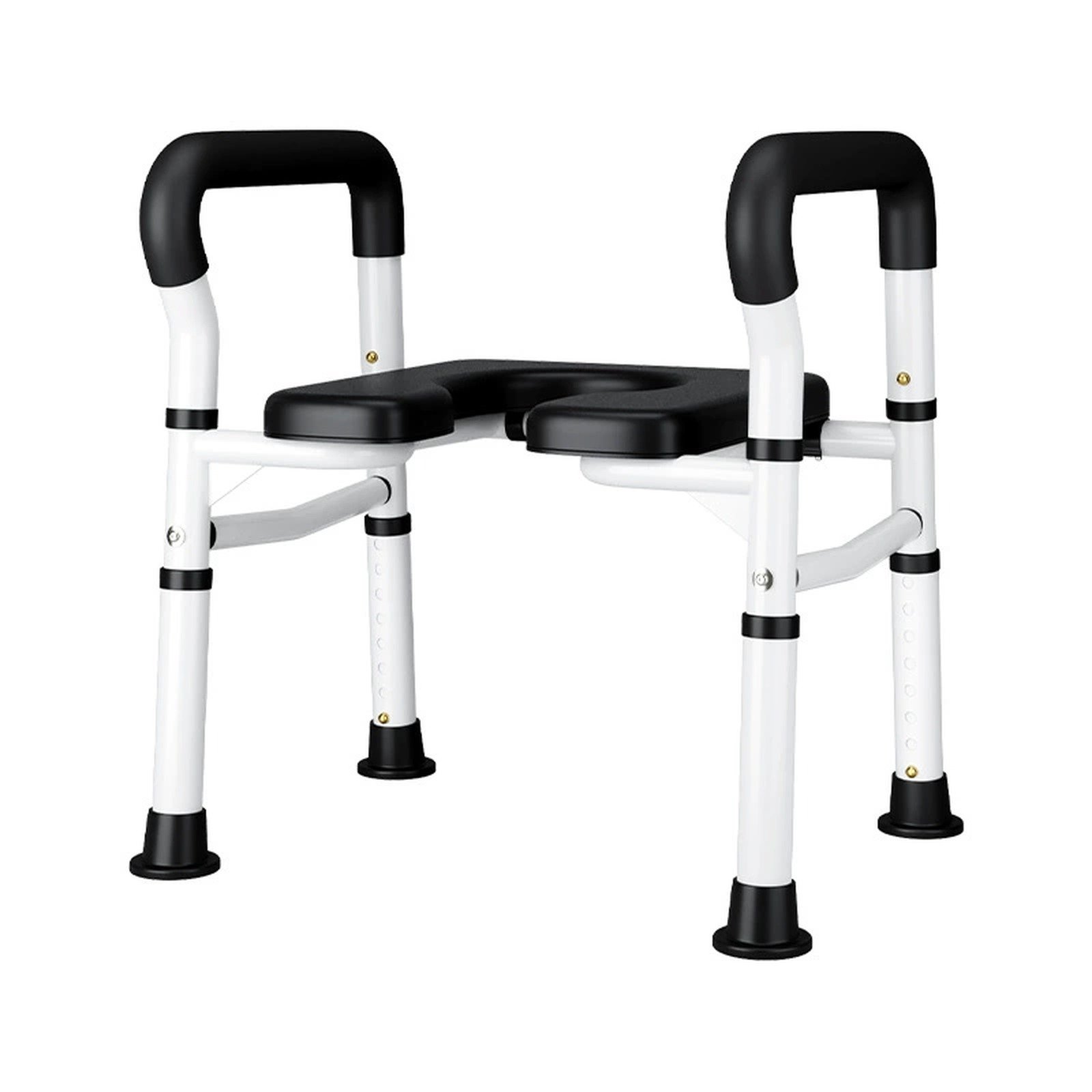

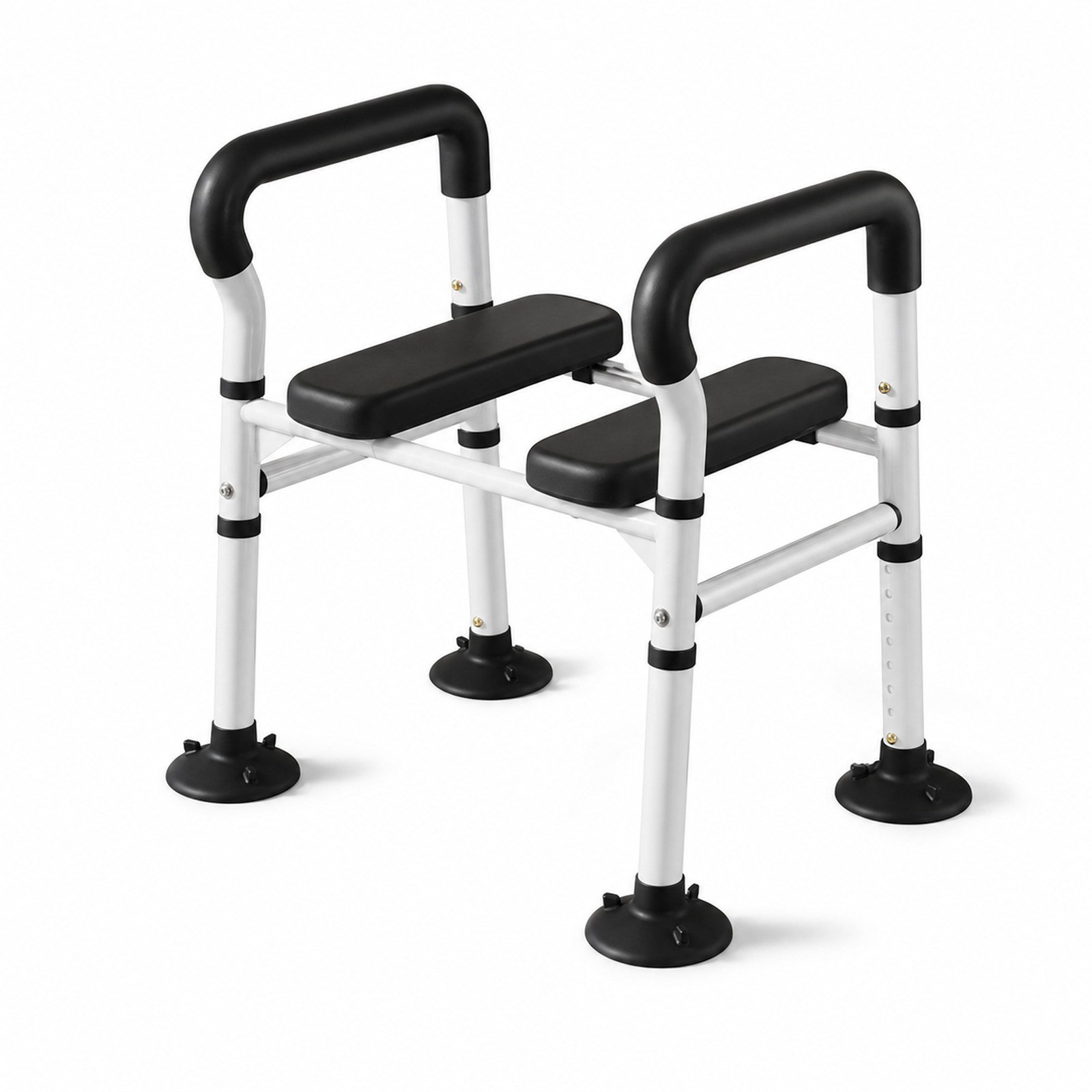

The Toilet Stand-Assist Grab Bar Frame is a bathroom support aid designed for individuals with limited lower-limb strength, older adults, and those recovering after surgery. It assists with sitting down on and standing up from a toilet, providing stability during transfers and reducing fall risk in restroom settings. The board is constructed primarily from aluminum alloy, offering a durable yet manageable frame. It is intended for home bathrooms, elderly care facilities, rehabilitation centers, and similar public spaces. Users should verify that the board is placed on a level surface, all connections are secure, and adjustment points are correctly locked before each use. Sufficient clearance around the toilet is necessary for safe turning and weight shifting.
The toilet safety rail VT1-TSR-001 is designed for practical daily care. It balances user support, operating convenience and routine caregiver efficiency. The configuration and materials shown in the specification table are matched to this product; select the final size and configuration for the user’s body dimensions, mobility, care needs and available space.
Before first use, place the product on a suitable, level surface and check every connection, lock, adjustment point, folding joint and brake or support component. The user should approach or transfer slowly while maintaining a stable posture. A caregiver should assist whenever balance, strength or coordination is limited. This product is a daily-care aid and does not replace medical assessment or a prescribed rehabilitation plan.
For ongoing use, keep contact surfaces clean and dry, inspect fasteners and moving parts at regular intervals, and stop using the product if any component becomes loose, damaged or unstable. Packaging dimensions and weights in the table are supplied for storage, shipping and receiving planning; actual batch labels and the selected configuration take precedence.
| Specification | Details |
|---|---|
| Product Name | Toilet Stand-Assist Grab Bar Frame |
| Product Category | Toilet Safety Rail |
| Overall Height | 65.5-83cm |
| Seat Height（Specification1） | 43-60.5cm |
| Seat Height（Specification2） | 43-60.5cm |
| Seat Height（Specification3） | 43~60.5cm |
| Overall Length（Specification1） | 61-66cm |
| Overall Length（Specification2） | 66-71cm |
| Overall Width（Specification1） | 47cm |
| Overall Width（Specification2） | 52cm |
| Net Weight | 3.2kg |
| Main Frame Material | Aluminum Alloy |
| Additional Specification | Additional Specification |
| Carton Quantity | 1 |
Vatocare toilet sit-to-stand support frame is suitable for toilet sit-to-stand assistance, bathroom support, and fall prevention. It can be configured as needed in homes, elderly care institutions, rehabilitation centers, nursing spaces, or appropriate public facilities. For individuals with lower limb weakness, elderly users, and post-operative recovery patients, the decision to use independently or with caregiver assistance should be based on physical condition. Height, angle, position, or support method adjustments should be completed during first use. The usage area should remain flat, dry, and unobstructed, with items that could interfere with operation or passage kept away. When used in bathrooms, restrooms, or mobility scenarios, special attention should be paid to slip resistance and stability. As a toilet safety rail, the product provides daily assistance and support and cannot replace medical diagnosis, professional rehabilitation plans, or procedures that must be performed by healthcare personnel.
The board targets older adults, individuals with weak legs, and post-operative patients. Final suitability depends on the person’s body weight, height, balance, and whether a caregiver is available.
Measure the user’s hip width and weight, then compare those with the toilet seat height, bathroom door width, and the clear floor space in front of and beside the toilet. Also measure the distance from the toilet rim to the nearest wall if side support is planned.
Only if the person has sufficient arm strength and balance to push up from the handles without wobbling. Anyone with moderate to severe instability, recent surgery, or dizziness should have a family member or nurse assist during every transfer.
Confirm the board sits flat without rocking, all quick-release pins are fully inserted, the height adjustment collar is tight, and the rubber feet or anti-slip pads contact the floor firmly. Also verify that the swivel mechanism, if present, rotates smoothly and locks in the forward position.
Use a damp cloth with mild soap or a non-abrasive household cleaner. Wipe the aluminum frame and any plastic grips, then dry with a clean towel. Never use bleach, acidic descalers, or steel wool, as these can corrode the metal or degrade the grip surface.
Compare the user’s weight against the stated maximum load, and check that the seat width and overall height fit the toilet bowl shape. For facilities with multiple residents, select a model with a wider adjustment range and verify the packaging dimensions to ensure storage space is adequate.
