A folding wheelchair often opens during transport because it lacks a lock, road vibrations shake it, or improper loading occurs. Users must load the chair into your trunk correctly to prevent unfolding. Many wonder why their wheelchair opens when they lift this into my trunk. Lifting a chair into a car demands a stable technique. The foldable wheelchair also requires careful folding. Simple fixes like straps or locks resolve this loading issue. The foldable design itself is not flawed—proper steps keep it secure.

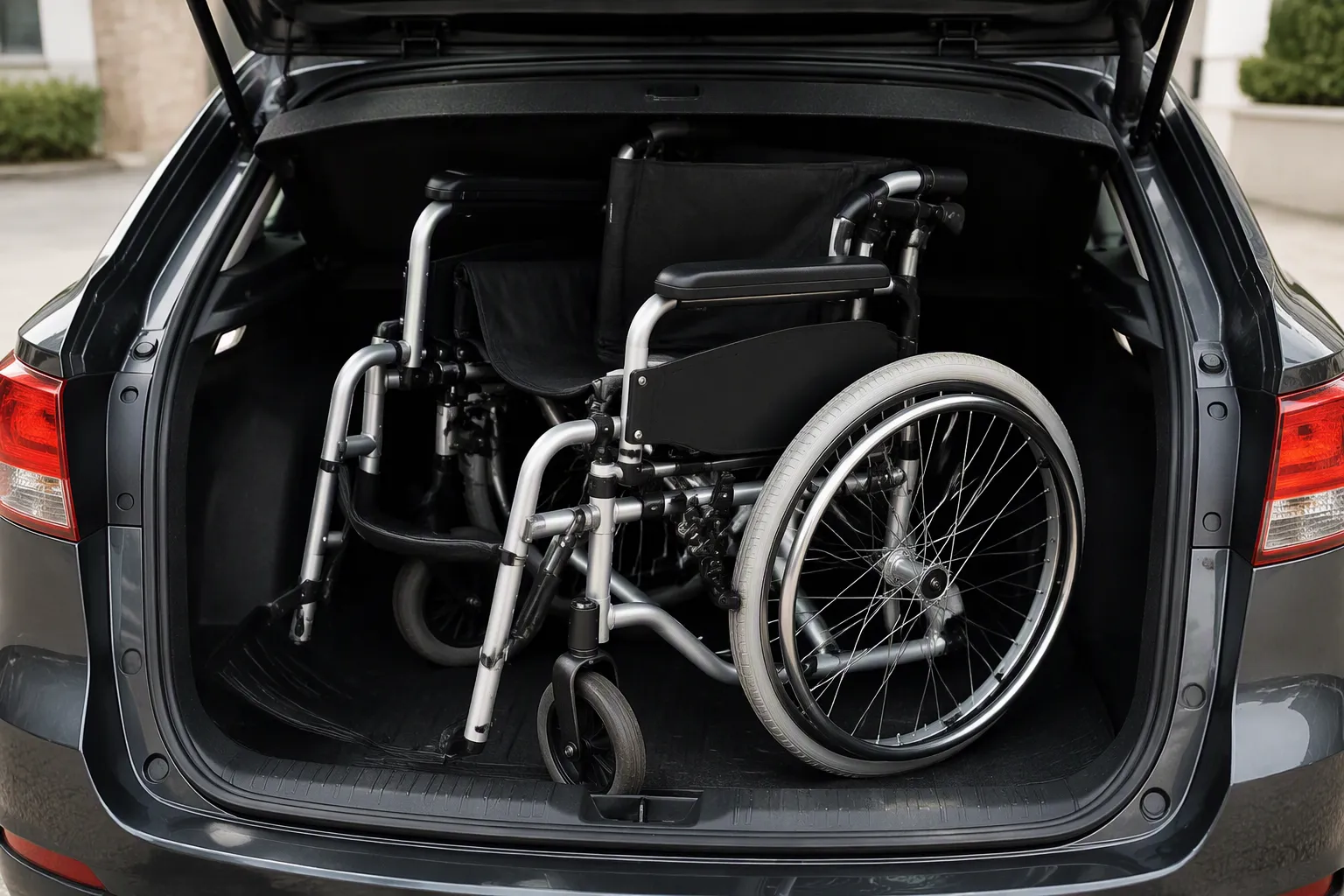

Why Your Folding Wheelchair Pops Open in the Trunk
No Built-In Lock
Most Folding Chairs Have No Latch
Manufacturers design most folding wheelchairs to fold for storage and travel. They do not include a latch that holds the frame in the folded position. A user folds the chair, lifts it into a vehicle’s trunk, and expects it to stay compact. Nothing on the frame prevents the two halves from separating during the drive.
A folding power wheelchair often includes a locking pin near the battery compartment. Manual chairs rarely receive this feature. The difference comes down to cost and design priorities. Manufacturers assume users will secure the chair with straps or store it in a dedicated bag. This assumption creates the problem that thousands of users face every day.
The absence of a latch is not a defect. It is a design choice that places responsibility on the user. A foldable wheelchair without a lock depends entirely on gravity and friction to stay closed. Both forces fail during normal driving conditions.
Why the Frame Slides Back Into Place
A folding frame operates on a simple hinge system. Two side frames connect through cross-braces. When a user pushes the seat down, the cross-braces straighten and lock the frame open. When a user pulls the seat up, the cross-braces fold inward and the frame collapses.
Gravity pulls the folded frame apart when the chair sits at an angle. The cross-braces slide along their pivot points with very little resistance. A slight tilt of the chair allows the seat rails to drop. Once the seat rails drop, the frame begins to open. The opening continues until the chair reaches its full width or hits an obstacle.
This sliding action happens in seconds. A user who places a folded chair against the trunk wall may find it fully open by the time they reach their destination. The frame slides back into place because nothing holds it in the folded position.
Road Vibrations Shake It Loose
How Bumps and Turns Affect the Frame
A moving vehicle creates constant motion. Every bump in the road sends a jolt through the chassis. Every turn shifts the weight of cargo from one side to the other. A folded wheelchair sits directly on the trunk floor and absorbs all of this energy.
The cross-braces on a folding frame have small amounts of play at each pivot point. This play allows the chair to fold smoothly. It also allows the frame to move when external forces act on it. A bump pushes the chair upward. The chair lands, and the impact travels through the frame. The pivot points shift slightly with each impact.
Turns create lateral forces. A left turn pushes the chair to the right side of the trunk. A right turn pushes it back. These forces act on the folded frame like hands pulling it open. The cross-braces rotate around their pivots with each turn. Over many turns, the frame opens completely.
Why the Trunk Amplifies Movement
A vehicle’s trunk acts like a speaker box for vibration. The enclosed space traps sound and motion. The floor of the trunk sits directly above the rear axle in most cars. This position exposes the trunk to every road imperfection.
The trunk floor also has a hard, smooth surface. A folded chair slides easily across this surface. Nothing dampens the movement. The chair bounces, slides, and rotates with every change in vehicle direction.
A trunk or backseat offers no resistance to a folding frame. The open space allows the chair to unfold without hitting anything. A user who places the chair in a tight spot may prevent full opening. A user who places it in an open trunk gives the frame all the room it needs to spread out.
Improper Folding Leaves It Unstable
Folding the Seat the Wrong Way
The correct folding method requires a user to pull the seat upholstery upward. This action lifts the center of the seat and pulls the side frames together. The cross-braces fold inward and the chair collapses into a narrow package.
Some users push the seat down instead. They believe this action folds the chair. Pushing the seat down actually locks the frame in the open position. The cross-braces straighten and the chair becomes rigid. A user who then forces the frame together may bend the cross-braces or damage the pivot points.
A chair folded the wrong way never achieves a stable folded shape. The frame sits at an odd angle. The cross-braces remain partially extended. Road vibrations easily push this unstable shape into a fully open position. The folding process demands the correct technique every single time.
Leaving the Footrests On
Footrests add length and weight to a folded chair. They hang from the front of the frame and swing freely during transport. A swinging footrest acts like a lever. It transfers motion to the frame with every swing.
A footrest that hits the trunk wall pushes the chair in the opposite direction. This push can separate the folded halves. A footrest that swings freely adds momentum to the frame. The frame absorbs this momentum and begins to open.
Removing footrests before folding solves this problem. Most footrests detach with a simple release mechanism. A user who removes the footrests reduces the folded size and eliminates the swinging lever. The chair becomes more compact and more stable. The loading process also becomes easier because the chair weighs less.
Signs Your Foldable Wheelchair Needs Attention
Worn Hinges and Pivot Points
How Loose Joints Let the Frame Slip
Hinges and pivot points wear down after years of folding and unfolding. Metal rubs against metal with every cycle. The contact surfaces gradually lose material and create gaps. These gaps allow the frame to move freely instead of holding its position.
A worn hinge cannot maintain tension on the cross-braces. The braces slide along their pivots with almost no resistance. A slight bump pushes the frame open. The chair then unfolds inside the trunk without any external force. Loose joints turn a minor vibration into a full unfolding event.
When to Replace Worn Hardware
A user should inspect hinges every few months. Visible gaps around a pivot point signal wear. A hinge that wobbles when touched needs replacement. Rust or dark residue near a joint also indicates internal damage.
Replacement hardware costs very little. Most manufacturers sell hinge kits for common wheelchair models. A user who replaces worn hinges restores the frame tension. The chair then holds its folded shape during transport.
A Bent or Twisted Frame
How to Check for Frame Damage
A bent frame changes the geometry of the folding mechanism. A user can check for damage by placing the folded chair on a flat floor. All four contact points should touch the ground evenly. A chair that rocks or tilts has a bent frame.
A user can also measure the folded width at the top and bottom. The two measurements should match. A difference of more than half an inch indicates twisting. Visual inspection along the frame tubes reveals dents or curves.
Why a Damaged Frame Won’t Stay Folded
A bent frame cannot align its cross-braces properly. The braces sit at an angle instead of a straight line. This misalignment removes the natural friction that holds the fold. The frame then opens with very little provocation.
A twisted frame also places uneven pressure on the pivot points. One side wears faster than the other. The chair becomes progressively looser over time. A damaged frame requires professional repair or replacement.
Loose or Missing Hardware
Bolts, Nuts, and Cross-Braces
Bolts and nuts hold the entire folding mechanism together. These fasteners loosen with constant vibration. A missing bolt allows the cross-brace to shift out of position. The frame then loses its structural integrity.
A user should check every bolt on the frame. The seat rails, cross-braces, and side frames all carry fasteners. A loose bolt turns freely by hand. A missing bolt leaves an empty hole and a wobbly joint.
Quick Checks Before You Drive
A thirty-second inspection prevents most unfolding problems. A user should grab each cross-brace and push it side to side. Any movement beyond normal folding action signals a loose fastener. A quick tighten with the correct tool solves the problem immediately.
A loose bolt today becomes a broken frame tomorrow.
A user who performs this check before every drive keeps the chair secure. The foldable design depends on tight hardware for stable transport.
Lock Your Folding Wheelchair for Safe Trunk Transport
A lock solves the unfolding problem at its source. The device holds the frame in the folded position regardless of road conditions. A user gains peace of mind with a simple mechanical solution. Many locking options exist, and each one offers different benefits. The right choice depends on budget, chair design, and user preference.
Types of Locks That Work
Frame Locks and Cross-Brace Locks
A frame lock attaches to the side frame tubes. The device bridges the gap between the front and rear sections of the folded chair. A spring-loaded latch engages when the user folds the chair. A release lever disengages the lock when the user needs to open the chair.
Cross-brace locks work differently. These devices clamp directly onto the cross-braces beneath the seat. A locking bar connects the two braces and prevents them from rotating. The bar holds the braces in their folded position. A user releases a pin or clip to allow the braces to move again.
Both lock types provide a solid mechanical hold. A frame lock offers easier installation on most models. A cross-brace lock provides a more direct block against the folding action. A user should measure the frame tubes before purchasing either type. The diameter of the tubes determines which lock fits properly.
Velcro Straps and Buckle Straps
Velcro straps wrap around the folded frame and hold the two halves together. These straps offer a simple, tool-free solution. A user wraps the strap around the frame tubes and presses the Velcro surfaces together. The strap holds the chair in its compact shape.
Buckle straps provide a more secure hold than Velcro. A nylon strap with a plastic or metal buckle resists vibration better than hook-and-loop material. The buckle locks the strap at a fixed length. A user pulls the strap tight and snaps the buckle closed. The chair stays folded until the user releases the buckle.
Velcro straps work well for light-duty use. Buckle straps handle rougher roads and longer drives. A user can combine both types for maximum security. One strap around the top and one around the bottom creates a stable package.
How to Install a Lock
Step-by-Step Placement
Installation varies by lock type, but the general process follows a consistent pattern.
- Fold the chair completely and place it on a flat surface.
- Identify the two frame tubes that meet when the chair folds.
- Position the lock or strap around both tubes at the midpoint.
- Mark the placement with tape or a marker.
- Attach the lock according to the manufacturer’s instructions.
- Adjust the tension so the lock holds firmly without bending the tubes.
A user should place the lock near the center of the folded frame. This position provides the most leverage against unfolding. A lock placed too close to a hinge allows the opposite end to swing open. A lock placed at the center holds both halves equally.
Testing the Lock Before Driving
A test ensures the lock performs under real conditions. A user should lift the folded chair by the lock itself. The chair should remain folded without any movement. A chair that opens during this test needs a tighter adjustment or a different lock position.
A user should also shake the chair gently after locking. Any movement at the frame indicates a loose hold. The lock should eliminate all play between the two frame halves. A successful test gives the user confidence before placing the chair in the vehicle.
A lock that fails at home will fail on the road.
A user should repeat this test after every adjustment. The lock must hold the chair in its folded shape without any assistance from gravity or friction.
DIY Locking Ideas
Bungee Cords and Zip Ties
A bungee cord offers a quick and inexpensive solution. A user wraps the cord around the folded frame and hooks the ends together. The elastic tension holds the frame halves in place. A bungee cord works well for short trips and light chairs.
Zip ties provide a permanent hold. A user threads a zip tie through the frame tubes and pulls it tight. The tie locks the chair in its folded position. A user cuts the tie to open the chair again. This method works best for long-term storage or transport of a chair that rarely opens.
Bungee cords allow quick release and reuse. Zip ties offer maximum security at minimal cost. A user can carry spare zip ties in the vehicle for unexpected needs.
Using a Seat Belt as a Lock
A vehicle seat belt can serve as an emergency lock. A user folds the chair and places it on the back seat. The user pulls the seat belt across the folded frame and buckles it. The belt holds the chair against the seat and prevents unfolding.
This method requires no additional equipment. It works in any vehicle with a standard seat belt. A user should pull the belt tight to remove all slack. The chair then stays folded for the entire drive.
A seat belt lock works best for temporary situations. A user who transports a chair daily should invest in a dedicated lock or strap. The seat belt method provides a reliable backup when other options are unavailable.
Secure Your Folding Wheelchair in the Trunk With Straps
Straps offer a reliable solution for keeping a folding wheelchair closed during transport. A user who secures the chair with straps prevents unexpected opening and protects the frame from damage. The right strapping method makes stowing foldable wheelchairs simple and safe.
Best Straps for the Trunk
Cam Straps vs. Ratchet Straps
Cam straps use a spring-loaded buckle that locks the webbing in place. A user pulls the strap tight and the cam mechanism holds it without slipping. These straps work well for light loads and quick adjustments. Ratchet straps use a mechanical lever to tighten the webbing. A user cranks the lever to achieve high tension. Ratchet straps hold heavier loads and resist vibration better than cam straps. A user who transports a wheelchair daily should choose ratchet straps for maximum security.
Why Soft Straps Protect the Frame
Nylon and polyester webbing straps protect the frame from scratches and dents. Hard metal chains or rigid tie-downs can damage the paint and bend thin frame tubes. Soft straps distribute pressure across a wider area. This distribution prevents concentrated stress points that lead to frame damage. A user should avoid straps with sharp metal hooks that contact the frame directly.
How to Strap It Down
Wrapping Around the Folded Frame
A user should wrap the strap around the folded frame at two points. The first strap goes around the upper section near the seat rails. The second strap goes around the lower section near the cross-braces. This two-point system prevents the frame from twisting or sliding open. Each strap should pass over both frame halves and cinch tight against the folded package.
Anchoring to Trunk Tie-Downs
Many vehicles include tie-down loops or cargo hooks in the trunk. A user can thread the strap through these anchor points for additional security. The anchor prevents the chair from sliding across the trunk floor during turns. A vehicle without built-in anchors can use aftermarket D-rings bolted to the trunk floor. Proper anchoring eliminates movement during trunk transport.
Common Strapping Mistakes
Strapping Too Loose
A loose strap allows the frame to shift and separate. The chair slides across the trunk floor with every turn. The cross-braces rotate freely and the chair opens. A user should test the strap tension by pushing the folded frame side to side. Any movement indicates a loose strap that needs tightening.
Strapping Too Tight and Bending Parts
Excessive tension bends thin frame tubes and damages pivot points. A user who cranks a ratchet strap too far can crush the cross-braces. The frame then loses its shape and will not fold properly. A user should tighten the strap until the frame feels firm but not compressed. The strap should hold the chair without leaving marks on the tubing.
A strap that damages the frame creates a bigger problem than the one it solves.
A user who masters strap tension and placement achieves safe loading every time. The foldable chair stays closed and the frame remains protected.
How to Fold a Folding Wheelchair Correctly
Proper folding technique prevents most trunk opening problems. A user who masters the correct method creates a compact, stable package that resists vibration. The folding wheelchair demands specific steps for reliable transport.
Step-by-Step Folding
Remove Footrests, Cushions, and Wheels if Possible
A user should remove all detachable components before folding. Footrests, seat cushions, and rear wheels add bulk and create swinging levers during transport. Most manufacturers design these parts for quick release. A user who removes them achieves a tighter fold and reduces the weight for easier loading. The chair also becomes more compact for stowing in tight spaces.
Pull the Seat Up, Not Down
The correct folding motion requires lifting the seat upward. A user should lock both wheel locks first so the chair cannot roll during the process. Standing beside the chair provides better leverage than standing in front. The user grips the seat rails at the front edge and back edge. Lifting the seat straight up causes the chair’s sides to move inward. A user must keep fingers away from pinch points near the cross-brace.
1800Wheelchair’s guide supports the core folding grip: place one hand on the front edge of the seat and the other on the back edge of the seat.
The complete procedure follows a consistent pattern:
- Lock both wheel locks so the chair cannot roll or twist during folding.
- Move the footplates out of the way by flipping them up or swinging the footrests outward.
- Stand beside the chair rather than directly in front for better leverage and safety.
- Grip the seat rails at the front edge and back edge of the seat.
- Lift the seat straight up slowly so the chair’s sides move inward; keep fingers on the seat rails and away from pinch points near the cross-brace.
- Confirm the chair is fully folded before lifting or carrying it, checking that the sides are close together, the seat is lifted, and the front casters are not stuck against a footrest.
Karman Healthcare describes the same basic folding motion: lift the seat upward so the chair folds inward.
A user should confirm the chair is fully folded before lifting it. The sides should sit close together with the seat lifted and the front casters clear of any obstruction.
Positioning in the Trunk
Lay It Flat or Stand It Up
A user can position the folded chair in two ways. Laying it flat on the trunk floor distributes weight evenly and prevents tipping. Standing it upright saves floor space but requires strapping to prevent falls. The best choice depends on available room and other cargo. A flat position works well for most sedans. An upright position suits SUVs and hatchbacks with taller cargo areas.
Leave Space and Check Trunk Opening Height
A user must verify the trunk opening height before loading. The folded chair must pass through the opening without forcing. A tight fit can push the frame partially open during insertion. Leaving a few inches of clearance prevents this problem. A user should also leave space around the folded chair inside the trunk. A chair packed against other items may shift and unfold.
Habits That Keep It Folded
Always Fold the Same Way
Consistency builds muscle memory and ensures a proper fold every time. A user who follows the same sequence avoids skipping critical steps. The chair then achieves the same compact shape on every trip. This habit reduces the risk of a partial fold that opens during driving.
Check It Before You Close the Trunk
A final inspection takes only seconds. A user should verify that the chair remains folded and that straps or locks hold it secure. A quick push on the frame reveals any looseness. This simple check prevents surprise openings and protects the wheelchair from damage.
Maintain Your Folding Wheelchair to Prevent Unfolding
A foldable wheelchair that receives regular maintenance stays folded during transport. Loose hardware, dry joints, and worn parts allow the frame to open unexpectedly. A user who follows a simple maintenance schedule prevents these failures and extends the life of the chair.
Tighten Hardware Regularly
Monthly Bolt Checks
Folding mechanisms rely on tight fasteners at every pivot point. A user should test the folding mechanism weekly by opening and closing the chair a few times. Squeaks or grinding sounds indicate loose components. The frame should lock firmly when unfolded. A monthly inspection of all bolts catches problems before they cause an unfolding incident.
A detailed frame check should occur every few months. The cross-brace, joints, and main frame need inspection for cracks, bends, or rust. A user who operates the chair indoors on smooth surfaces can perform general maintenance every three to four months. A user who frequently traverses rough terrain should inspect every two months. A full check before any long trip confirms that all components remain in top condition.
Using the Right Tools
Standard hand tools handle most maintenance tasks. A screwdriver of the correct size tightens seat rail fasteners and lock mechanisms. A set of metric or standard wrenches addresses the bolts on the cross-braces and side frames. A user should keep these tools in the vehicle for quick adjustments before driving.
Lubricate Moving Parts
Where to Apply Lubricant
Folding hinges, pivot points, and wheel axles require lubrication to maintain smooth operation. The cross-brace joints and footrest hinges also benefit from regular application. Light machine oil works well for the folding mechanism, caster pivot points, and exposed hinges. Teflon-based spray provides an alternative suitable for the same moving parts. WD-40 should never serve as a long-term lubricant because it attracts dirt and creates sticky buildup over time.
How Often to Do It
The rule is simple: lubricate monthly, inspect quarterly, and replace annually. A user applies lubricant to clean surfaces in small amounts and wipes away excess to prevent dirt accumulation. Sealed bearings should never receive lubrication. Adding oil to these components damages internal seals and voids manufacturer warranties.
The table below summarizes key maintenance intervals:
| Maintenance Task | Frequency | Tools Needed |
|---|---|---|
| Lubricate hinges/joints | Monthly | Silicone spray |
| Inspect locks | Quarterly | Screwdriver |
| Check springs | Annually | None |
Replace Worn Parts Early
Hinges, Pins, and Bushings
Every pivot point wears over time. A hinge that wobbles or a pin that slides freely needs replacement. These parts cost little and restore the frame’s ability to hold its folded shape. A user who waits too long risks damage to the main frame tubes.
When to See a Repair Tech
A user should consult a repair technician for frame cracks, bent tubing, or rust that compromises structural integrity. These issues go beyond routine maintenance and require professional assessment. A damaged frame will not stay folded regardless of locks or straps. Early intervention prevents a complete chair replacement.
Better Trunk Storage Tips for Your Foldable Wheelchair
Use a Wheelchair Bag
Why a Bag Holds the Fold
A dedicated bag encloses the folded frame and prevents the cross-braces from spreading. The bag compresses the chair into a fixed shape. No amount of road vibration can separate the frame halves when a sturdy bag surrounds them. Users simply zip the bag closed after folding. The bag also protects the chair from dirt and moisture during storage.
Bag storage simplifies loading a wheelchair because the package stays compact and uniform. Users grab the bag handles and place the unit directly into the vehicle’s trunk or backseat. The bag eliminates loose parts that snag on edges.
Padded Bags for Extra Protection
A padded bag adds a layer of cushioning around the frame. The padding absorbs impacts during turns and stops. It prevents scratches on the vehicle interior and reduces noise from shifting cargo. Users who transport a chair daily benefit from the long-term protection a padded bag provides.
Most padded bags include shoulder straps for carrying. This feature helps users who must lift the chair up to the opening. The bag transforms an awkward load into a manageable package.
Add Trunk Organization
Cargo Bars and Dividers
A cargo bar stretches across the cargo area and creates a dedicated zone for the folded chair. The bar prevents the chair from sliding during turns. Users position the bar behind the chair to keep it pressed against the back seat.
Dividers separate the chair from other items. Groceries, tools, and luggage slide into the chair when the vehicle turns sharply. The divider prevents these items from pushing the frame open. A simple mesh barrier or adjustable partition grid works well for this purpose.
Non-Slip Mats Under the Chair
A non-slip mat sits on the floor beneath the folded chair. The mat grips the frame tubes and prevents sliding. Users find that a mat alone solves the unfolding problem for light chairs and short trips.
The mat also protects the sedan trunk floor from scratches and dents. Users who replace their vehicle every few years appreciate this floor protection during storage. A mat costs very little and installs in seconds. A sedan trunk often has a carpeted surface that allows sliding. The mat eliminates this problem.
Consider a Different Chair
Chairs With Built-In Locks
Some manufacturers now produce foldable wheelchairs with integrated locking mechanisms. A lever or pin engages automatically when the user folds the chair. The lock releases with a simple pull for the next use. Users who transport a chair daily should evaluate these models for long-term convenience.
A built-in lock eliminates the need for straps, bags, or DIY solutions. The user folds the chair and loads it without additional steps. This convenience justifies the higher purchase price for frequent travelers.
Rigid Frames vs. Folding Frames
A rigid-frame model does not fold at all. The frame remains permanently open. This design eliminates the unfolding problem entirely. Users who have a vehicle with a ramp or lift can transport a rigid frame without concern.
A rigid frame also offers better structural stability and longer lifespan. The lack of hinges and pivot points removes the primary failure modes of foldable designs. Users who prioritize reliability over stowing convenience should consider a rigid chair.
However, a rigid frame requires more vertical clearance during stowing. Users with limited trunk space may find a folding chair necessary. The choice depends on daily transport needs and vehicle capacity.
Wheelchair loading tips include using a bag, adding a mat, and considering a rigid frame. These strategies make transport safe and predictable.
A folding wheelchair opens in the trunk when it lacks a lock, road vibrations shake it, or the user folds it loosely. Locks, straps, and proper technique secure the foldable frame. Regular maintenance keeps this foldable chair tight and prevents surprise openings. The wheelchair then stays closed during transport. Users should pick one solution today and test it on the next drive.
FAQ
Can a folding wheelchair open in the trunk without a lock?
Yes. A folding wheelchair lacks a built-in latch on most models. Road vibrations and turns push the cross-braces apart. The frame slides open without resistance. A lock or strap prevents this problem.
What is the fastest way to keep a folding wheelchair closed?
A Velcro strap offers the fastest solution. A user wraps it around the folded frame and presses the surfaces together. The strap holds both halves secure. Installation takes only seconds.
Do ratchet straps damage a folding wheelchair frame?
Ratchet straps can damage thin frame tubes when overtightened. A user should tighten until the frame feels firm. Excessive tension crushes cross-braces and bends pivot points. Soft nylon straps protect the frame better.
How often should a user check wheelchair hardware?
A user should inspect bolts monthly. Weekly folding tests reveal loose components through squeaks or grinding sounds. A detailed frame check every few months catches cracks and bends. Rough terrain demands more frequent inspections.
Why does a wheelchair still open after strapping?
A loose strap allows frame movement during turns. A user should test tension by pushing the folded frame side to side. Any movement signals a loose strap. Proper anchoring to trunk tie-downs also prevents sliding.
Can a seat belt hold a folding wheelchair closed?
Yes. A user folds the chair and places it on the back seat. The seat belt wraps across the folded frame and buckles tight. This method works as a reliable backup for temporary transport.
What maintenance prevents unexpected unfolding?
Monthly lubrication of hinges and pivot points keeps the folding mechanism smooth. Quarterly lock inspections confirm proper function. Annual replacement of worn hinges, pins, and bushings restores frame tension. Tight hardware holds the folded shape during transport.
Should a user buy a wheelchair with a built-in lock?
A built-in lock eliminates the need for straps and DIY solutions. Users who transport a chair daily benefit from this convenience. The higher purchase price justifies the long-term security. Rigid frames offer another alternative for frequent travelers.
